Zero-Tie Rebar Support. Designed for 3 Parallel Bars.
3-Bar Footing Chair
Maximize Trench Efficiency with the 3-Bar Footing Chair

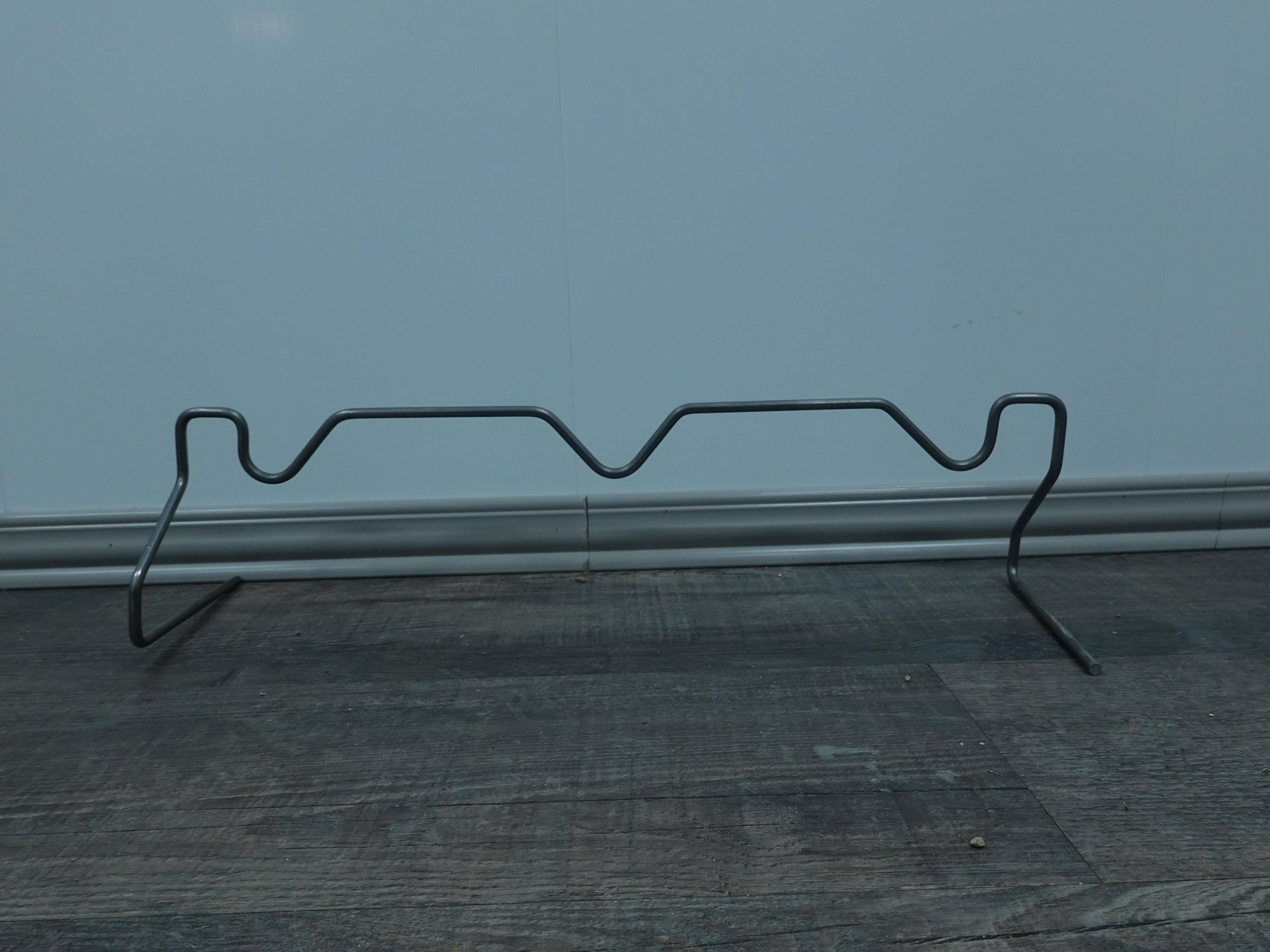

The Synchro 3-Bar Footing Chair is purpose-built for heavy-duty, deep foundation projects requiring three runs of steel, such as large-scale barn foundations, commercial grade beams, and heavy perimeter frost walls. Specifically engineered for raw, uneven dirt trenches, this chair completely replaces the need to place and measure three separate, flimsy single-wire supports. With factory pre-welded spacing that holds three parallel rebar rods at the exact specified intervals, your crew can put their tape measures away and cut foundation prep time by up to 70%.
Multi-Bar Support (3-in-1)
One chair replaces three. Synchro’s chair spans the width of the trench, holding 3 parallel bars simultaneously with a single drop.
Automatic Factory Spacing
Pre-welded exact spacing at our automated 3D CNC factory completely removes human error and the need to lay tape measures in the mud.
True "Zero-Tie" Capability
The specialized 1.5-inch deep lock slots trap the heavy rebar naturally, completely eliminating the miserable job of hand-tying wire.
3 Bar Chair Estimator
Synchro Project Estimator
Calculate your heavy-duty steel support requirements instantly. Enter your dimensions below to generate your exact factory requirements.
Include 10% Overage Buffer
RecommendedIndustry standard to account for overlapping splices, heavy traffic pump zones, corners, and job site waste.
Footing Chairs
For trench foundations, frost walls, and grade beams.
(Calculates 1 chair every 3 linear feet)
Slab Chairs
For flatwork, garage floors, barn slabs, and patios.
(Calculates 1 chair every 4 sq ft based on a 2'x2' grid)
3 BAR FOOTING CHAIR PLACEMENT & USAGE
Designed for deep trenches and heavy grade beams, the Synchro 3-Bar Footing Chair offers a foolproof "drop-and-pour" setup. Workers place the pre-welded chairs directly into the excavated dirt trench, where the massive 6-inch-wide "snowshoe" base prevents them from sinking or tipping in the mud. Next, crews drop three parallel runs of heavy rebar straight into the 1-1/2" deep "zero-tie" plunge slots. Gravity securely traps the steel, instantly providing perfectly parallel spacing and a code-compliant 3-1/2" clearance without ever needing to touch a roll of tie-wire.
Drop. Lock. Pour.
Simply drop your heavy steel rebar into our massive 1-1/2" deep plunge slots. The steel gets physically trapped by natural gravity and friction, meaning no wire tying is needed. Our pre-welded chairs ensure your reinforcement stays exactly where the blueprint dictates—before, during, and after the concrete pump hits it.
Frequently Asked Questions
Where is this chair used?
Down inside excavated dirt trenches and deep mud.
Do I need to tie the 3 pieces of rebar?
No, the three 1.5-inch deep "Zero-Tie" lock slots hold all three bars securely through gravity and friction.
What is the overall height of the chair?
It provides a 3-1/2 inch clearance height from the dirt.

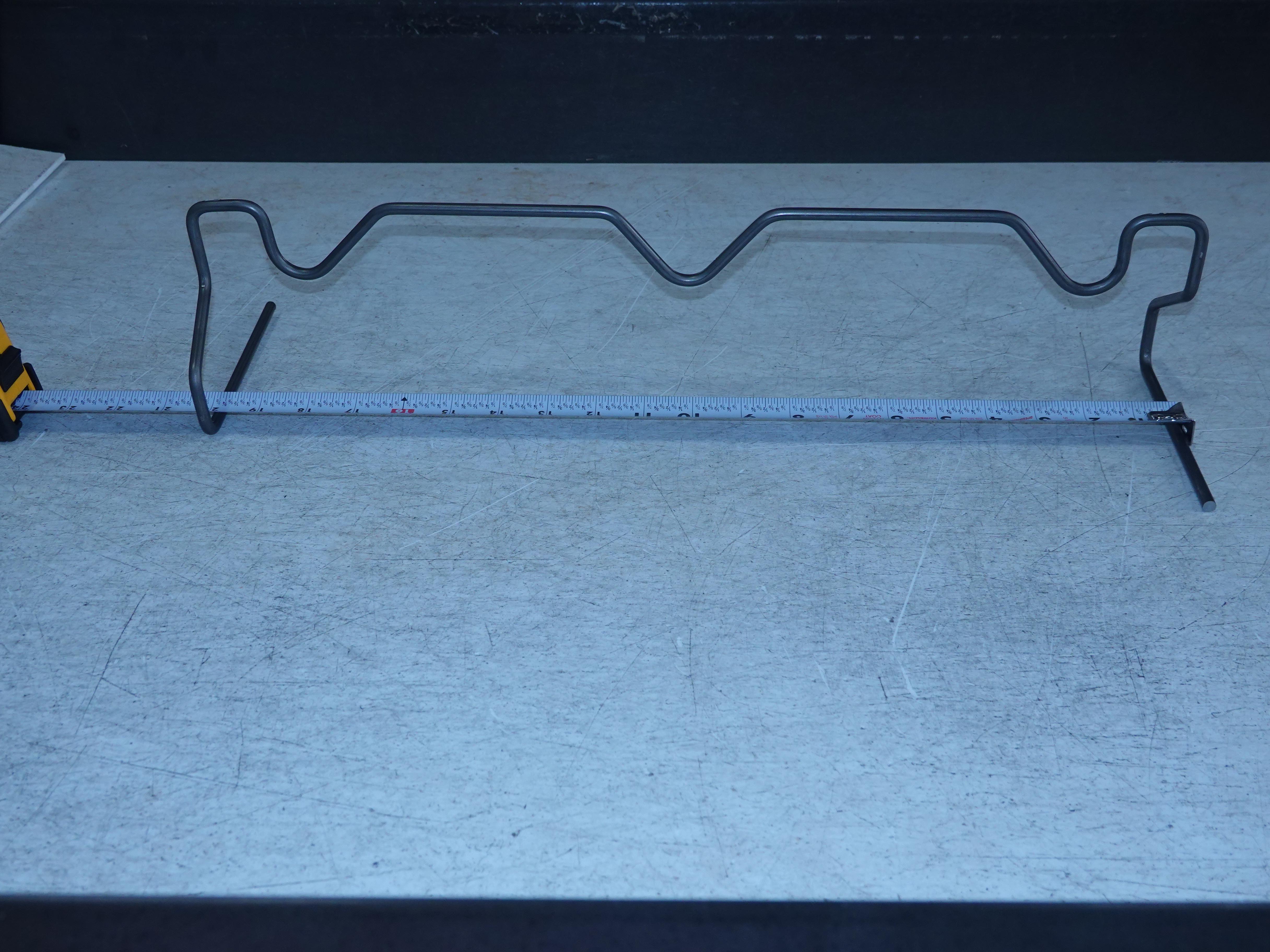

What is the spacing between the rebar rods?
Exactly 8 inches.
Will it tip over in the mud?
No, the 6-inch wide "Snowshoe" A-frame is specifically built to prevent mud-tipping.
Is the steel certified?
Yes, we use traceable Canadian steel and can provide full Mill Test Reports (MTR) for commercial compliance.
Direct Factory Ordering
Trusting an overseas supplier with your foundation’s structural integrity is a massive risk. At Synchro Wire & Fab, we manufacture every single steel chair right here in Carbon, Alberta.
We make procurement easy for the busy colony boss or construction manager. Skip the complicated digital purchase orders. Text us @ (587) 608-5451, and we will text you a formal bulk estimate within 24 hours.
